✦ Tridium Official Partner

Tridium Niagara Framework

The world's leading open IoT platform connecting everything from edge devices to enterprise applications. A million instances, hundreds of thousands of deployments running reliably.

Visit Tridium Website →

1,000,000+

Global Instances

100,000+

Project Deployments

200+

Protocol Drivers

6,000+

Partners

Flagship Hardware

JACE® Hardware Series

JACE® 9000 Controller

4th-gen Niagara embedded controller supporting BACnet/IP, Modbus TCP/RTU, DALI, MQTT, KNX and more. Ideal for mid-to-large building automation projects. Quad-core CPU, double storage & memory, HTML5 web UI, optional Wi-Fi, flexible licensing from 100 to 10,000+ points.

Niagara® Supervisor

Enterprise centralized management platform unifying JACE, Niagara Edge and other field devices. Real-time web dashboard, centralized data logging/trending, alarm management, master scheduling, database management, analytics engine and enterprise-grade cybersecurity.

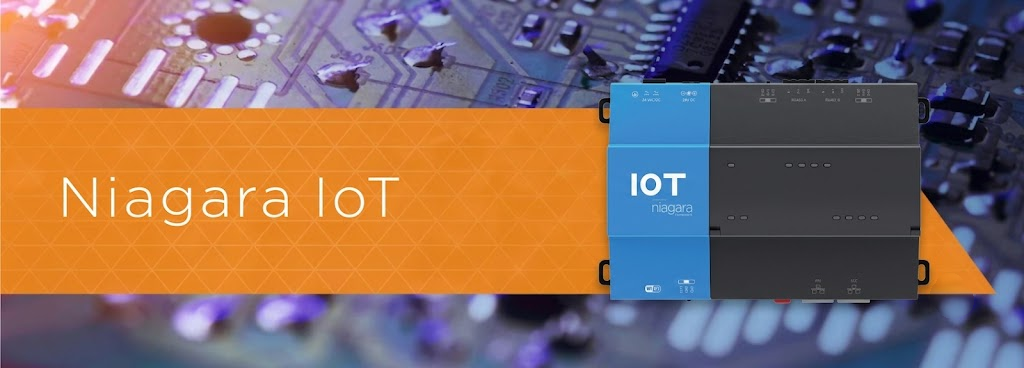

JACE® IoT Control Engine

Niagara IoT is Tridium's edge controller purpose-built for China and global small-site deployments. Built on Niagara Framework 4, it combines control, analytics and visualization at a competitive price point for enterprise-grade intelligence at small sites.

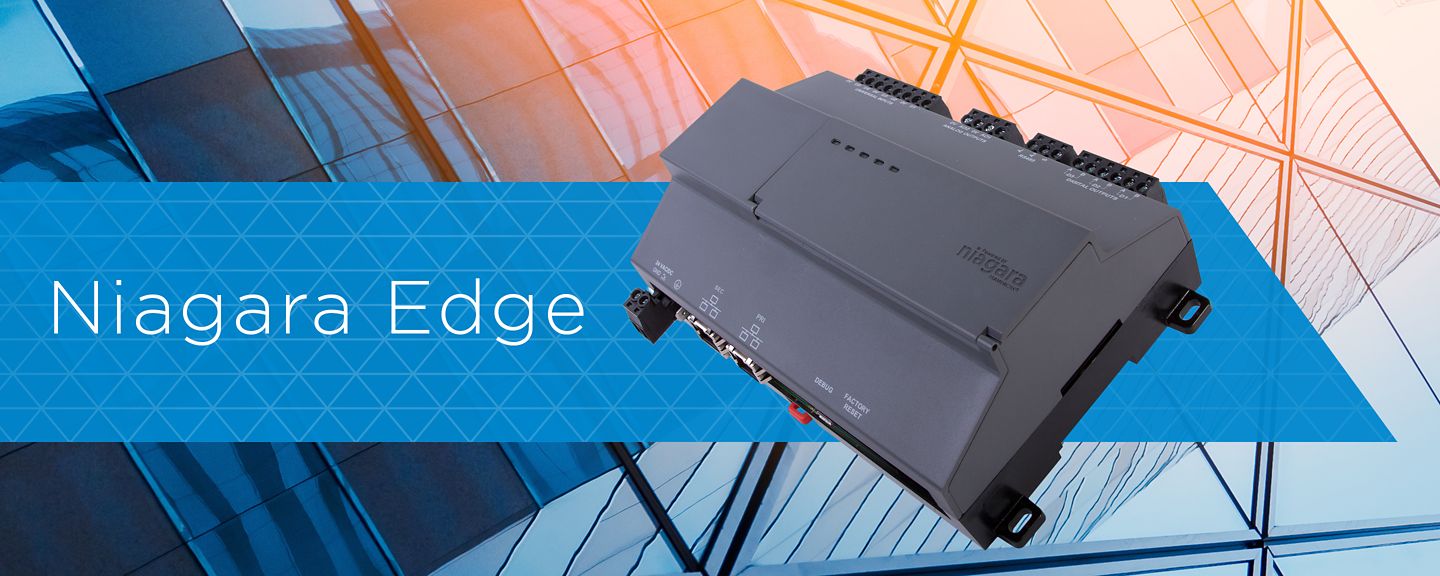

Niagara® Edge 10 IoT Edge Controller

10-point IP-enabled field controller running the full Niagara 4 framework. Built-in ACE deterministic control engine with web services, data logging, alarming, analytics and trending. A single-tool Niagara infrastructure ideal for rooftop units, fan coil units and other small-point-count applications. Cost-effectively extract operational data from facilities without a BMS — retail stores, K-12 schools and more.

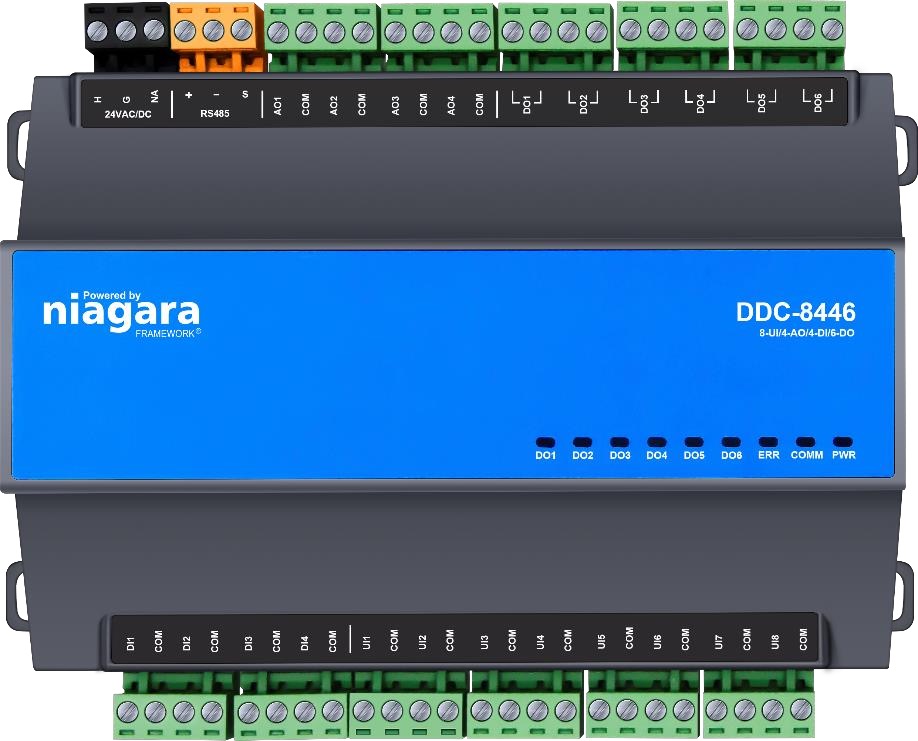

DDC-8446 Series DDC Controller

ARM Cortex-M4 @84MHz, 8 UI (configurable AI/DI), 4 DI, 4 AO (0-10V/0-20mA), 6 DO (dry contact). 1x RS485 (BACnet MS/TP, Modbus RTU). Supports IO-0800 (8 DI) and IO-6020 (6 UI + 2 AO) expansion modules. Optional GW-112 IP module (MT7628AN @580MHz) for BACnet IP/Modbus TCP, Up to 110 points, with up to 4 DDC-8446 devices per backbone trunk.

Niagara Supported Protocols

Niagara Framework Supports the industry's broadest protocol driver library: BACnet/IP, BACnet MSTP, Modbus RTU/TCP, KNX, DALI, LonWorks, MQTT, SNMP, OPC UA, BACnet Secure Connect, EnOcean, CCN (Carrier), EtherNet/IP, C-Bus, M-Bus, DL/T645 and 200+ third-party drivers, continuously expandable via Niagara Community.

Next-Gen Platform

Niagara 5 — Next Generation

Built on Java 25 with hybrid version architecture for smooth migration from N4 to N5.

Built on Java 25 for dramatically improved performance and future-readiness. The hybrid version architecture supports smooth migration from Niagara 4 to Niagara 5. Niagara 4 has been the most widely deployed BMS platform globally for the past decade. Dual Niagara 4/5 runtime enables progressive device-level upgrades without disrupting operations.

Built on Java 25 with enhanced performance. Mixed-version architecture enables smooth N4 to N5 transition.

Global Certifications & Partners

Tridium is BACnet internationally certified (B-AWS / B-BC compliant) and U.S. Federal Risk Management Framework (RMF) accredited. Over 6,000 partners worldwide.
